5.6.11.3 Example applications for QMatrix acquisition method libraries
The QMatrix acquisition method libraries include example projects for some of the supported
devices. Example projects for both IAR IDE and AVR Studio IDE along with example applications
are provided for select devices using the QMatrix acquisition libraries. These sample applications
demonstrate the usage of the touch API’s to add touch sensing to an application. Refer to the
library selection guide for details on the example projects and sample applications supported for
the release.
5.6.11.3.1 Selecting the right configuration
The sample applications are built to support a maximum channel support configuration available
for that particular device for both IAR & AVR IDEs.
Internally there are two configurations for each device.
?
?
ALL KEYS configuration : Supports only keys
KEYS/ROTORS/SLIDERS configuration : Supports keys or rotors or sliders
concurrently
These configurations enable a set of stored options and a specific library to be selected in order
to build application using the specific library.

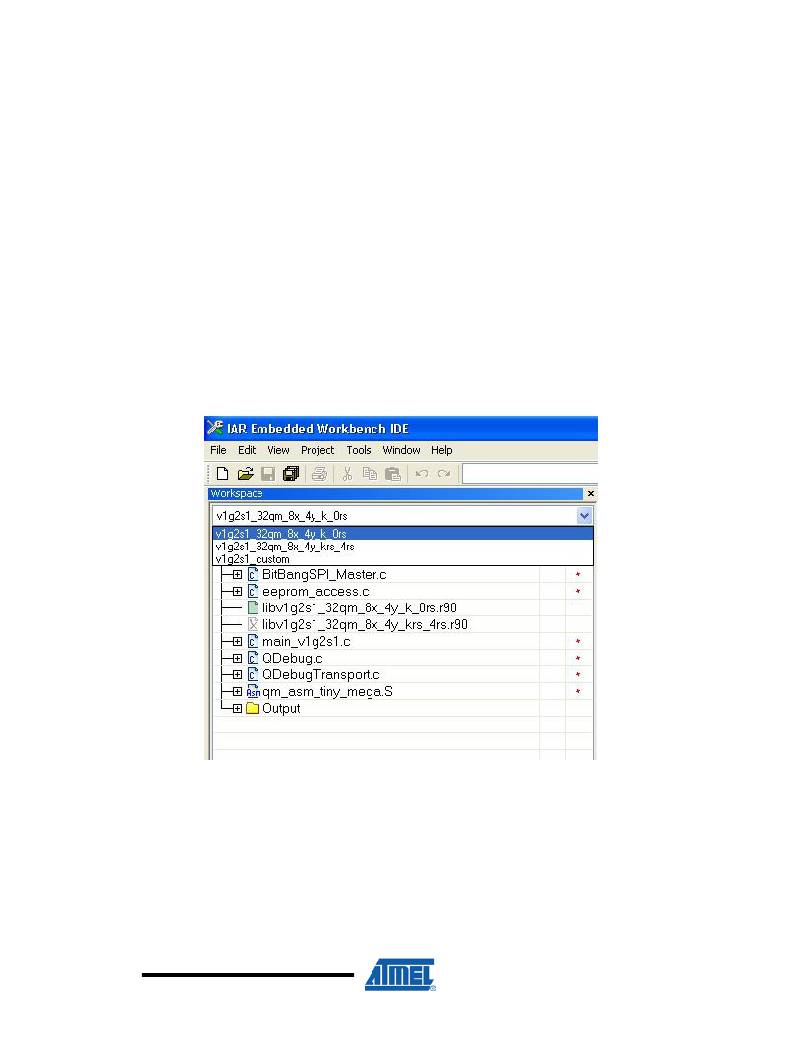

Figure 5-16 : Selecting the right configuration in the QMatrix acquisition method example
applications in IAR –IDE
73
